ALS Refactored Structure

This page is a high-level map of the ALS-Refactored plugin. It keeps the source and asset references from the more technical version, but it also tries to explain how the pieces relate to each other while you are still learning the plugin.

The goal is to make the plugin feel less like one huge black box. By the end, you should know which systems exist, where the important assets live, and how input becomes movement, camera behavior, animation, overlay state, and replication.

Verified Plugin Context

Field	Value
Plugin	ALS-Refactored
Plugin version	4.17
Engine version in ALS.uplugin	5.7.0
Plugin source root	Plugins/ALS-Refactored/Source/...
Plugin asset mount point	/ALS/...
Plugin descriptor	Plugins/ALS-Refactored/ALS.uplugin

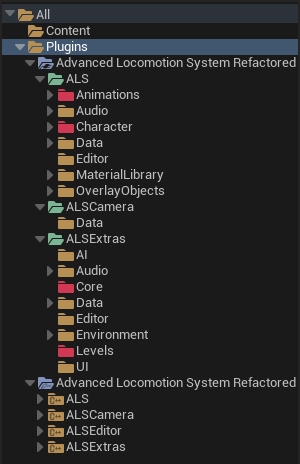

ALS plugin content in Content Drawer

The Unreal asset paths use the plugin mount point. For example:

/ALS/ALS/Character/B_Als_Character
/ALS/ALSExtras/Core/B_Als_GameMode

On disk, those assets live inside the plugin’s Content folder, but in Unreal references they appear under /ALS/....

The Short Version

ALS-Refactored is easiest to read as four layers:

Layer	Main responsibility
ALS module	Core character, movement, gameplay tags, animation support, mantling, rolling, ragdolling, replication
ALSCamera module	Custom ALS camera component and camera debug tools
ALSExtras module	Example character wrapper, player controller, game mode, UI, sample levels, input assets
ALSEditor module	Editor-only animation tools and editor graph nodes

The playable example flow is:

1. A map uses B_Als_GameMode.
2. B_Als_GameMode selects B_Als_Character as the default pawn.
3. B_Als_PlayerController creates the sample HUD and overlay menu widgets.
4. AAlsCharacterExample binds Enhanced Input actions for movement and character actions.
5. AAlsCharacter updates movement state, rotation, view, mantling, rolling, ragdolling, and network state.
6. UAlsCameraComponent calculates the final camera view.
7. AB_Als and its linked animation Blueprints read ALS state and blend the final pose.

ALS sample gameplay flow diagram

1. Plugin Modules

The plugin declares four modules in Plugins/ALS-Refactored/ALS.uplugin.

Module	Type	Purpose
ALS	Runtime	AAlsCharacter, UAlsCharacterMovementComponent, settings assets, gameplay tags, animation instance code, animation nodes, mantling, rolling, ragdolling
ALSCamera	Runtime	UAlsCameraComponent, camera animation instance, camera settings, camera debug helpers
ALSExtras	Runtime	Example character class, player controller, game mode, UI widgets, demo levels, AI example, Enhanced Input assets
ALSEditor	UncookedOnly	Editor-only animation modifiers, skeleton utilities, custom animation graph editor nodes

The plugin also enables these dependencies from ALS.uplugin:

Plugin	Why ALS uses it
ACLPlugin	Animation compression support
AnimationModifierLibrary	Editor animation modifier support
ControlRig	IK and pose adjustment support
EngineCameras	Camera-related engine features
EnhancedInput	Input actions and mapping contexts
GameplayTagsEditor	Gameplay tag editing support
Metasound	Audio support used by plugin content
Niagara	Effects support used by plugin content
PropertyAccessNode	Animation Blueprint property access support

2. Content Layout

The plugin content is split into two main asset groups:

Asset root	Purpose
/ALS/ALS/...	Core ALS character content: character Blueprint, animation Blueprints, input actions, settings assets, overlay objects
/ALS/ALSExtras/...	Example/demo content: game mode, player controller, UI widgets, sample maps, AI example

That split is worth learning early because it keeps you from wandering through the plugin blindly.

• /ALS/ALS/... is where the core playable character systems live
• /ALS/ALSExtras/... is where the example layer lives around those systems

If you are trying to understand how ALS itself works, you will spend most of your time in /ALS/ALS/.... If you are trying to understand how the sample setup presents ALS to the player, you will keep crossing into /ALS/ALSExtras/....

Useful starting assets:

Asset	Path
Main playable character Blueprint	/ALS/ALS/Character/B_Als_Character
Main character animation Blueprint	/ALS/ALS/Character/AB_Als
Example game mode	/ALS/ALSExtras/Core/B_Als_GameMode
Example player controller	/ALS/ALSExtras/Core/B_Als_PlayerController
Example HUD widget	/ALS/ALSExtras/UI/W_Als_Hud
Overlay mode menu widget	/ALS/ALSExtras/UI/W_Als_OverlayModeMenu
Default input mapping context	/ALS/ALS/Data/Input/IMC_Als_Default
UI input mapping context	/ALS/ALSExtras/Data/Input/IMC_Als_UI

3. Maps and GameMode Entry Points

ALS-Refactored ships sample levels inside the plugin:

Map	Path
Playground map	/ALS/ALSExtras/Levels/L_Als_Playground
Grid test map	/ALS/ALSExtras/Levels/L_Als_Grid

The example game mode is:

/ALS/ALSExtras/Core/B_Als_GameMode

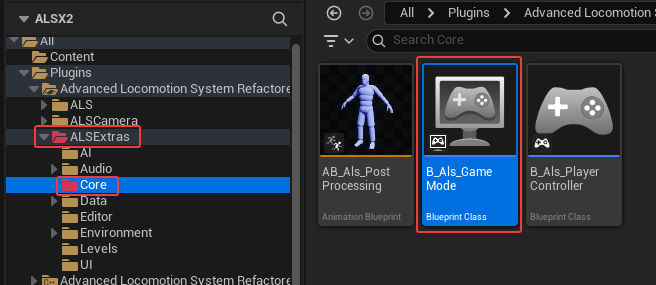

ALS game mode asset in Content Drawer

Verified class defaults on B_Als_GameMode:

Role	Class or asset
Parent class	GameModeBase
Default pawn	/ALS/ALS/Character/B_Als_Character
Player controller	/ALS/ALSExtras/Core/B_Als_PlayerController
HUD class	Engine default AHUD

The sample HUD is not assigned through HUDClass. It is created by B_Als_PlayerController during BeginPlay, which is useful to know when you want to customize the UI.

4. Character Class Stack

The playable ALS character is built in layers:

ACharacter
  -> AAlsCharacter
    -> AAlsCharacterExample
      -> B_Als_Character

Layer	Location	Purpose
ACharacter	Unreal Engine class	Base character movement and pawn behavior
AAlsCharacter	Plugins/ALS-Refactored/Source/ALS/Public/AlsCharacter.h	Core ALS runtime state, movement decisions, replication, mantling, rolling, ragdolling
AAlsCharacterExample	Plugins/ALS-Refactored/Source/ALSExtras/Public/AlsCharacterExample.h	Example wrapper that adds camera and Enhanced Input bindings
B_Als_Character	/ALS/ALS/Character/B_Als_Character	Blueprint asset that assigns mesh, animation, settings, input actions, and overlay data

ALS character folder content

5. Important Character Components

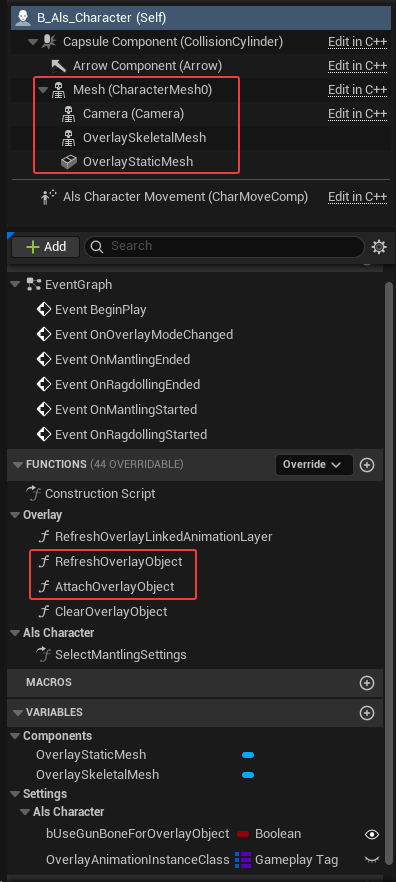

B_Als_Character component outline

This is a good place to pause and orient yourself. If you open B_Als_Character, these are the components that matter most when you are trying to understand what you are looking at.

B_Als_Character inherits these important native components:

Component	Class	Source or owner
CollisionCylinder	CapsuleComponent	Inherited from ACharacter
CharacterMesh0	SkeletalMeshComponent	Inherited from ACharacter
CharMoveComp	AlsCharacterMovementComponent	Set by AAlsCharacter constructor
Camera	AlsCameraComponent	Created by AAlsCharacterExample

B_Als_Character also adds overlay components:

Component	Class	Purpose
OverlaySkeletalMesh	SkeletalMeshComponent	Displays skeletal overlay objects such as rifle, pistol, bow
OverlayStaticMesh	StaticMeshComponent	Displays static overlay objects such as box, barrel, torch

If the core character looks confusing in the Blueprint editor, this table helps narrow your attention:

• CharacterMesh0 is the main body
• Camera is the ALS camera system
• CharMoveComp is the custom movement component
• the Overlay* components are the extra presentation layer for held objects and overlay poses

6. Default State and Data Assets

B_Als_Character starts with these desired-state defaults:

State	Default value
Desired stance	Als.Stance.Standing
Desired gait	Als.Gait.Running
Desired rotation mode	Als.RotationMode.ViewDirection
Desired aiming	false
View mode	Als.ViewMode.ThirdPerson
Overlay mode	Als.OverlayMode.Default

Important assigned data assets:

Asset	Path	Purpose
CS_Als_Default	/ALS/ALS/Data/Character/CS_Als_Default	Main character settings such as rotation, view, mantling, ragdolling, and thresholds
MS_Als_Normal	/ALS/ALS/Data/Character/Movement/MS_Als_Normal	Movement tuning for gait speeds and movement behavior
IMC_Als_Default	/ALS/ALS/Data/Input/IMC_Als_Default	Main gameplay input mapping context
IMC_Als_UI	/ALS/ALSExtras/Data/Input/IMC_Als_UI	UI/sample input mapping context used by the player controller

This is one of the big architectural patterns in ALS:

• C++ classes define the systems and rules
• data assets and Blueprints decide which settings, meshes, animations, and inputs are actually used

That is why learning the plugin means reading both code and assets together, not choosing one or the other.

7. Input Flow

Input is split between C++ character input and Blueprint controller input.

Character gameplay input

AAlsCharacterExample handles the normal gameplay actions in C++.

Input action	Asset path	Function	Source
IA_Als_LookMouse	/ALS/ALS/Data/Input/IA_Als_LookMouse	Input_OnLookMouse()	AlsCharacterExample.cpp:91
IA_Als_Look	/ALS/ALS/Data/Input/IA_Als_Look	Input_OnLook()	AlsCharacterExample.cpp:99
IA_Als_Move	/ALS/ALS/Data/Input/IA_Als_Move	Input_OnMove()	AlsCharacterExample.cpp:107
IA_Als_Sprint	/ALS/ALS/Data/Input/IA_Als_Sprint	Input_OnSprint()	AlsCharacterExample.cpp:127
IA_Als_Walk	/ALS/ALS/Data/Input/IA_Als_Walk	Input_OnWalk()	AlsCharacterExample.cpp:132
IA_Als_Crouch	/ALS/ALS/Data/Input/IA_Als_Crouch	Input_OnCrouch()	AlsCharacterExample.cpp:144
IA_Als_Jump	/ALS/ALS/Data/Input/IA_Als_Jump	Input_OnJump()	AlsCharacterExample.cpp:156
IA_Als_Aim	/ALS/ALS/Data/Input/IA_Als_Aim	Input_OnAim()	AlsCharacterExample.cpp:184
IA_Als_Ragdoll	/ALS/ALS/Data/Input/IA_Als_Ragdoll	Input_OnRagdoll()	AlsCharacterExample.cpp:189
IA_Als_Roll	/ALS/ALS/Data/Input/IA_Als_Roll	Input_OnRoll()	AlsCharacterExample.cpp:197
IA_Als_RotationMode	/ALS/ALS/Data/Input/IA_Als_RotationMode	Input_OnRotationMode()	AlsCharacterExample.cpp:204
IA_Als_ViewMode	/ALS/ALS/Data/Input/IA_Als_ViewMode	Input_OnViewMode()	AlsCharacterExample.cpp:211
IA_Als_SwitchShoulder	/ALS/ALS/Data/Input/IA_Als_SwitchShoulder	Input_OnSwitchShoulder()	AlsCharacterExample.cpp:217

The input setup happens in two steps:

1. NotifyControllerChanged() adds /ALS/ALS/Data/Input/IMC_Als_Default to the local player’s Enhanced Input subsystem.
2. SetupPlayerInputComponent() binds each input action to the matching C++ handler.

The handlers then call ALS state or action functions such as SetDesiredGait(), SetDesiredStance(), SetDesiredAiming(), StartRollingGrounded(), StartRagdolling(), StopRagdolling(), and SetViewMode().

If you are tracing “why did my key press change the character,” this is one of the clearest routes through the plugin:

Input action -> AAlsCharacterExample handler -> AAlsCharacter state/action function

Controller UI input

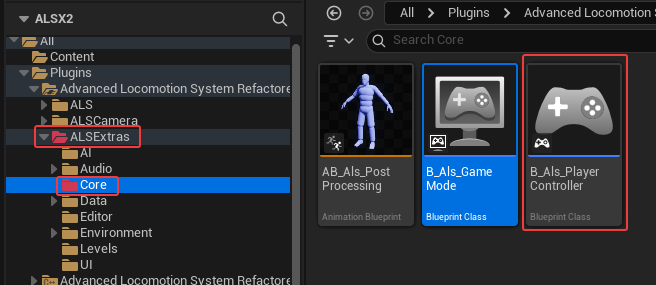

ALS player controller asset

B_Als_PlayerController handles the sample UI and overlay menu input.

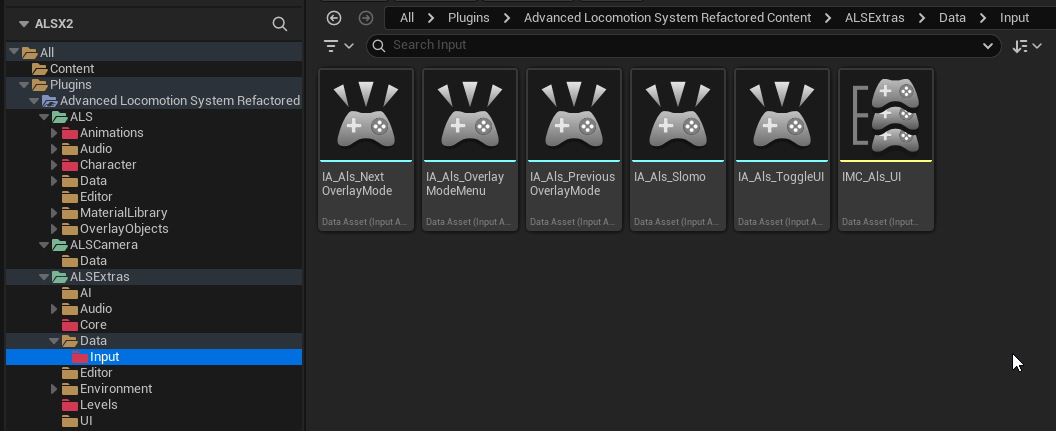

ALS input action assets

Input action	Asset path	Behavior
IA_Als_OverlayModeMenu	/ALS/ALSExtras/Data/Input/IA_Als_OverlayModeMenu	Opens/closes the overlay mode menu
IA_Als_NextOverlayMode	/ALS/ALSExtras/Data/Input/IA_Als_NextOverlayMode	Selects the next overlay option
IA_Als_PreviousOverlayMode	/ALS/ALSExtras/Data/Input/IA_Als_PreviousOverlayMode	Selects the previous overlay option
IA_Als_ToggleUI	/ALS/ALSExtras/Data/Input/IA_Als_ToggleUI	Toggles sample HUD visibility state
IA_Als_Slomo	/ALS/ALSExtras/Data/Input/IA_Als_Slomo	Toggles sample slow motion behavior

Related Blueprint:

/ALS/ALSExtras/Core/B_Als_PlayerController

Related widgets:

Widget	Path
HUD widget	/ALS/ALSExtras/UI/W_Als_Hud
Overlay menu widget	/ALS/ALSExtras/UI/W_Als_OverlayModeMenu
Overlay option widget	/ALS/ALSExtras/UI/W_Als_OverlayModeOption

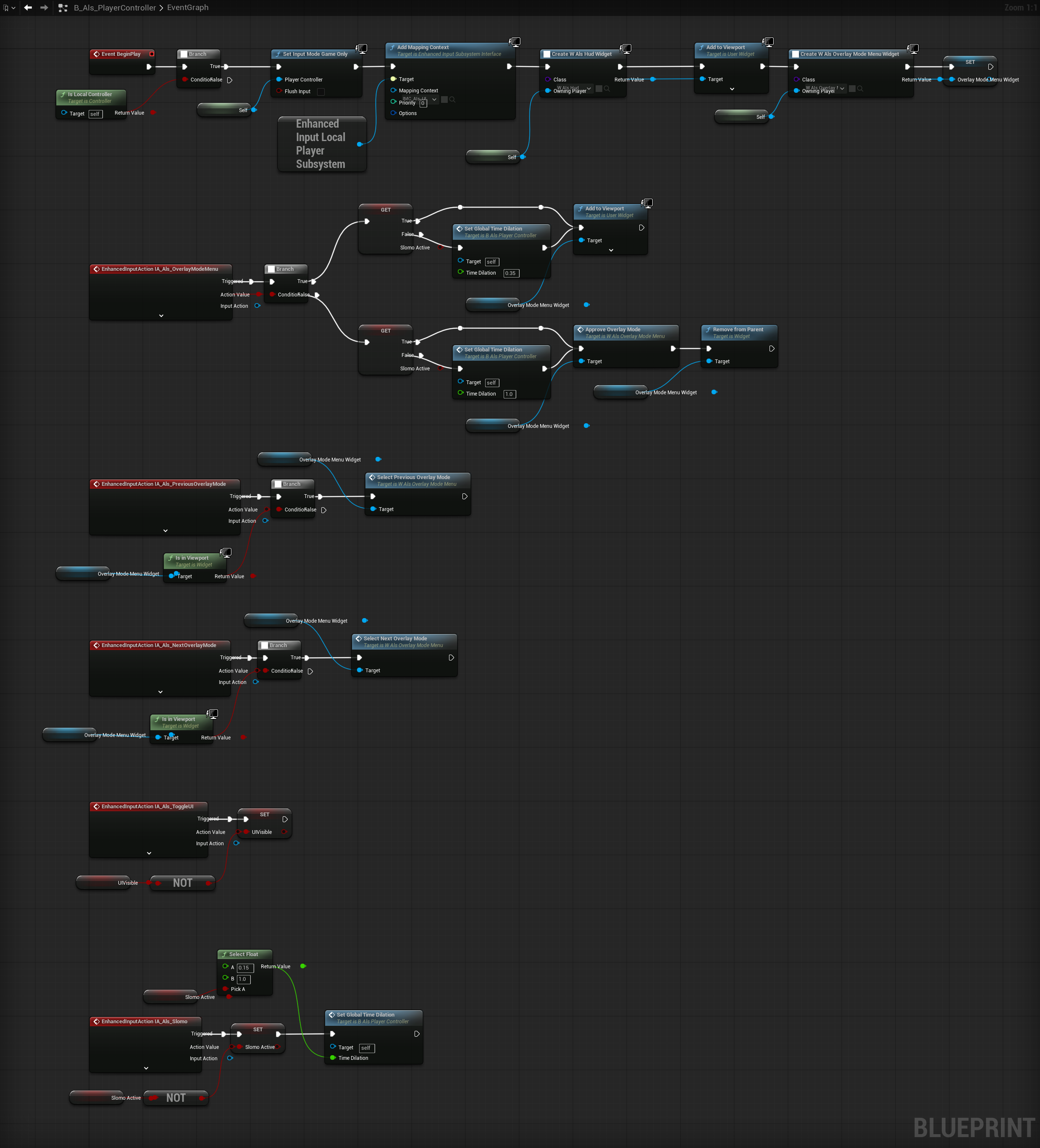

B_Als_Player_Controller EventGraph

B_Als_PlayerController Event Graph

On BeginPlay, the Blueprint:

1. checks that it is local
2. sets input mode to game only
3. adds the UI input mapping context IMC_Als_UI
4. creates W_Als_Hud and adds it to the viewport
5. creates W_Als_OverlayModeMenu and stores it for later

So if you want to change:

• overlay menu behavior
• sample UI creation
• extra debug input
• slow motion toggle behavior

this Blueprint is one of the main places to inspect.

The split between character input and controller input is intentional:

• character input changes locomotion state
• controller input changes the sample presentation layer around the character

8. Tick Order and Runtime Update Flow

The core update loop lives in:

Plugins/ALS-Refactored/Source/ALS/Private/AlsCharacter.cpp:266

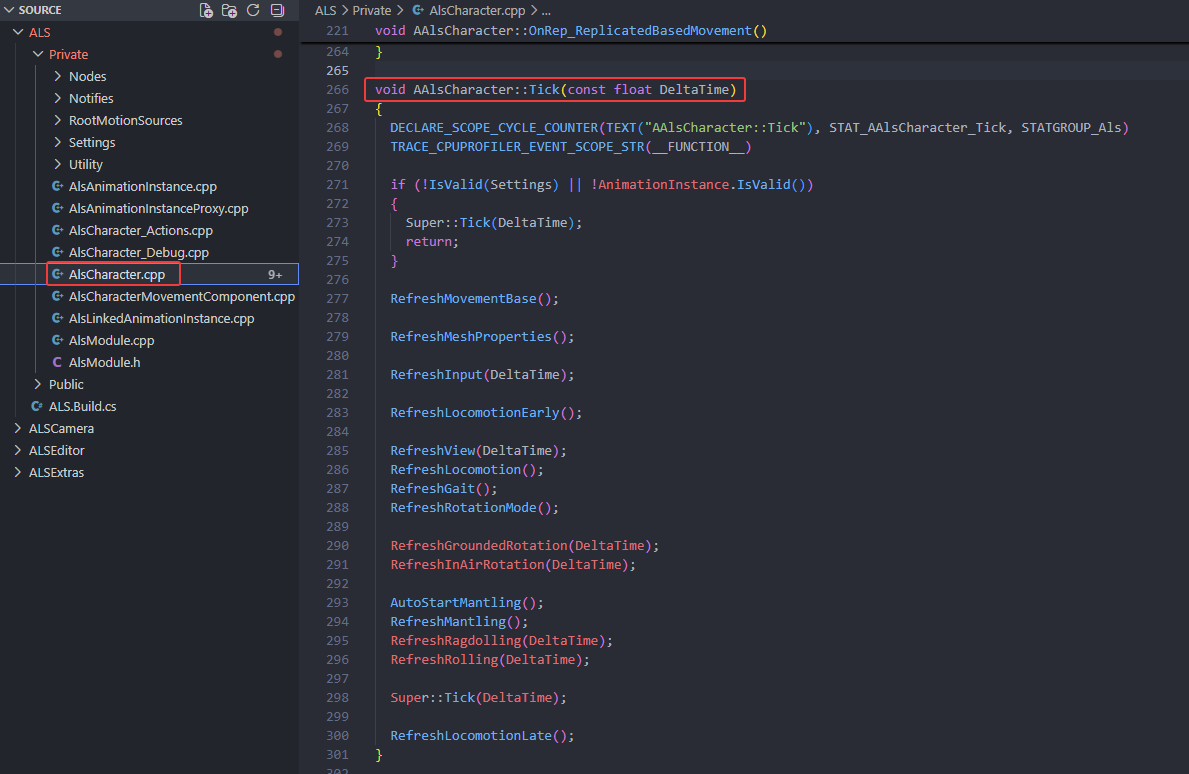

AlsCharacter.cpp Tick()

AlsCharacter.cpp Tick function

Adding function names and source lines is useful here because this section doubles as a reference. The plain-language description explains what the step means; the function/source column gives you a place to verify behavior later.

Order	Function call in AAlsCharacter::Tick()	Function definition	What it updates
1	RefreshMovementBase()	AlsCharacter.cpp:404	Tracks the floor/platform/moving base the character is standing on
2	RefreshMeshProperties()	AlsCharacter.cpp:327	Updates mesh ticking and visibility-related behavior, especially for networking
3	RefreshInput(DeltaTime)	AlsCharacter.cpp:1115	Converts movement input into input direction and input yaw data
4	RefreshLocomotionEarly()	AlsCharacter.cpp:1335	Prepares early locomotion values before the main movement refresh
5	RefreshView(DeltaTime)	AlsCharacter.cpp:1222	Updates view rotation, view yaw speed, and network smoothing
6	RefreshLocomotion()	AlsCharacter.cpp:1372	Calculates velocity, speed, moving state, and velocity yaw data
7	RefreshGait()	AlsCharacter.cpp:942	Resolves desired gait into actual gait based on movement state
8	RefreshRotationMode()	AlsCharacter.cpp:675	Resolves desired rotation mode into actual rotation mode
9	RefreshGroundedRotation(DeltaTime)	AlsCharacter.cpp:1514	Updates character rotation while grounded
10	RefreshInAirRotation(DeltaTime)	AlsCharacter.cpp:1820	Updates character rotation while falling or in air
11	AutoStartMantling()	AlsCharacter_Actions.cpp:156	Optionally starts mantling automatically while in air
12	RefreshMantling()	AlsCharacter_Actions.cpp:644	Updates active mantling movement and state
13	RefreshRagdolling(DeltaTime)	AlsCharacter_Actions.cpp:866	Updates active ragdoll state and target location
14	RefreshRolling(DeltaTime)	AlsCharacter_Actions.cpp:103	Updates active rolling state
15	RefreshLocomotionLate()	AlsCharacter.cpp:1439	Final locomotion cleanup after Super::Tick()

If you are debugging something that “looks wrong,” this table is often where the investigation starts. Many visible problems show up in animation or camera, but their cause actually starts earlier in the tick flow.

9. Gameplay Tags and ALS State

ALS uses Unreal’s Gameplay Tags to name character states in a consistent, data-friendly way.

A gameplay tag is a hierarchical name such as:

Als.Gait.Running
Als.RotationMode.ViewDirection
Als.OverlayMode.Rifle

In C++, these are still values, not loose strings. ALS defines them in:

Plugins/ALS-Refactored/Source/ALS/Private/Utility/AlsGameplayTags.cpp

and declares them in:

Plugins/ALS-Refactored/Source/ALS/Public/Utility/AlsGameplayTags.h

Why ALS uses gameplay tags

Gameplay tags work well for ALS because the same state value needs to be understood by several systems:

System	Example use
Character C++	Stores current and desired state, such as DesiredGait or OverlayMode
Animation Blueprints	Chooses locomotion, stance, overlay, or action animation layers
Blueprint assets	Exposes readable state values in defaults and maps
Replication	Sends selected state values over the network

For example, DesiredGait is a FGameplayTag. When sprint input is pressed, AAlsCharacterExample::Input_OnSprint() sets the desired gait to Als.Gait.Sprinting. Later, AAlsCharacter::RefreshGait() decides whether sprinting is actually allowed and updates the final Gait state.

Desired state vs actual state

ALS often separates desired state from actual state.

Desired state	Actual state	Meaning
DesiredGait	Gait	The player may request sprinting, but ALS decides whether the character can actually sprint
DesiredStance	Stance	The player may request crouching, but ALS applies it when movement state allows
DesiredRotationMode	RotationMode	The player may request a mode, while aiming or first person can affect the final mode

This distinction is important when debugging. If input seems correct but animation is different, check both the desired value and the final resolved value.

GameplayTags Driving Animation State

Namespace	Values
LocomotionMode	Grounded, InAir
RotationMode	VelocityDirection, ViewDirection, Aiming
Stance	Standing, Crouching
Gait	Walking, Running, Sprinting
OverlayMode	Default, Masculine, Feminine, Injured, HandsTied, Rifle, PistolOneHanded, PistolTwoHanded, Bow, Torch, Binoculars, Box, Barrel
LocomotionAction	Rolling, Mantling, Ragdolling, GettingUp
ViewMode	FirstPerson, ThirdPerson
GroundedEntryMode	FromRoll

10. Animation Architecture

The sample character does not use AB_Als_Locomotion as the top-level animation Blueprint. The top-level animation Blueprint is:

/ALS/ALS/Character/AB_Als

AB_Als acts as the main animation hub. It links into smaller animation Blueprints that focus on specific parts of the pose.

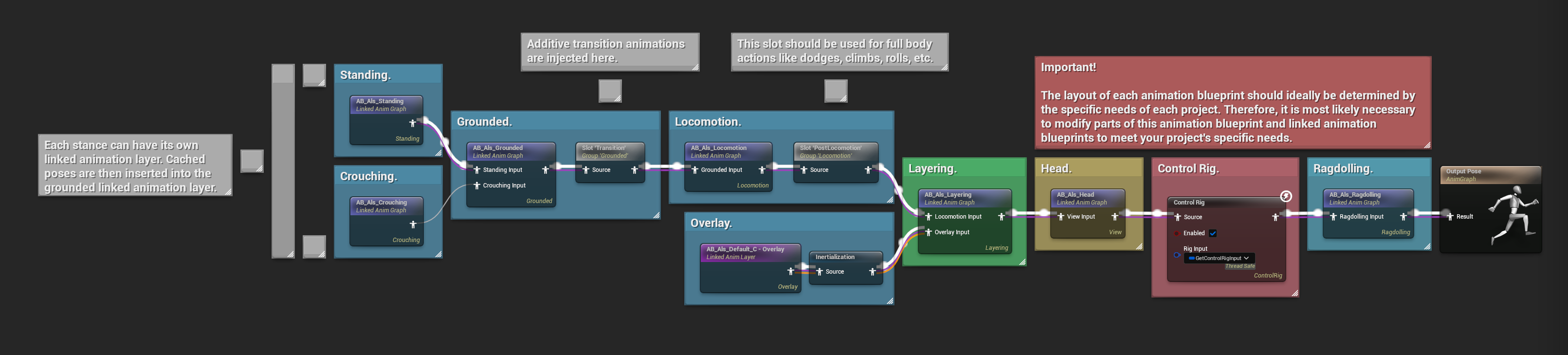

AB_Als Animation Graph

This is one of the places where ALS can feel intimidating at first. The good news is that the structure is actually pretty readable once you stop expecting one single “master locomotion blueprint” to contain everything.

Multiple Linked Animation Blueprints

Animation instance assets:

Animation Blueprint	Asset path	Purpose
AB_Als	/ALS/ALS/Character/AB_Als	Main animation Blueprint assigned to the character
AB_Als_Locomotion	/ALS/ALS/Character/AnimationInstances/AB_Als_Locomotion	Main locomotion blending, including grounded and in-air routing
AB_Als_Grounded	/ALS/ALS/Character/AnimationInstances/AB_Als_Grounded	Grounded movement such as walk, run, sprint, starts, stops, and pivots
AB_Als_View	/ALS/ALS/Character/AnimationInstances/AB_Als_View	View-dependent animation layer; this asset is present as an object redirector in the checked plugin
AB_Als_Head	/ALS/ALS/Character/AnimationInstances/AB_Als_Head	Head look and view/aim related pose contribution
AB_Als_Layering	/ALS/ALS/Character/AnimationInstances/AB_Als_Layering	Upper/lower body layering and overlay pose blending
AB_Als_Ragdolling	/ALS/ALS/Character/AnimationInstances/AB_Als_Ragdolling	Ragdoll and get-up animation support
AB_Als_Monolithic	/ALS/ALS/Character/AB_Als_Monolithic	All-in-one reference or alternative animation Blueprint

Overlay animation Blueprints live under:

/ALS/ALS/Character/AnimationInstances/Overlays/

Examples include:

Overlay animation Blueprint	Asset path
AB_Als_Default	/ALS/ALS/Character/AnimationInstances/Overlays/AB_Als_Default
AB_Als_Rifle	/ALS/ALS/Character/AnimationInstances/Overlays/AB_Als_Rifle
AB_Als_PistolOneHanded	/ALS/ALS/Character/AnimationInstances/Overlays/AB_Als_PistolOneHanded
AB_Als_PistolTwoHanded	/ALS/ALS/Character/AnimationInstances/Overlays/AB_Als_PistolTwoHanded
AB_Als_Bow	/ALS/ALS/Character/AnimationInstances/Overlays/AB_Als_Bow
AB_Als_Torch	/ALS/ALS/Character/AnimationInstances/Overlays/AB_Als_Torch

Animation C++ Update Flow

The animation Blueprint is backed by UAlsAnimationInstance.

Function	Source	Purpose
NativeUpdateAnimation()	Plugins/ALS-Refactored/Source/ALS/Private/AlsAnimationInstance.cpp:98	Reads character state on the game thread
NativeThreadSafeUpdateAnimation()	AlsAnimationInstance.cpp:170	Refreshes animation-side data that can run thread-safely
RefreshLayering()	AlsAnimationInstance.cpp:287	Reads animation curves that control body-part layering
RefreshPose()	AlsAnimationInstance.cpp:336	Reads pose curves such as grounded, in-air, stance, and gait amounts
RefreshView()	AlsAnimationInstance.cpp:386	Updates view yaw/pitch data used by head, spine, and aim layers
RefreshFeet()	AlsAnimationInstance.cpp:1298	Updates foot placement and foot lock data
RefreshTransitions()	AlsAnimationInstance.cpp:1676	Handles dynamic transition availability
RefreshRotateInPlace()	AlsAnimationInstance.cpp:1828	Determines rotate-in-place behavior
RefreshTurnInPlace()	AlsAnimationInstance.cpp:1904	Determines turn-in-place behavior

At a high level, the animation side is reading whatever AAlsCharacter has already resolved, then turning that into pose decisions. So if the animation looks wrong, it is often worth checking whether the problem is really animation, or whether the character state feeding it is already wrong.

11. Camera Architecture

The ALS camera is not a typical Unreal spring-arm camera stack.

The core class is:

UAlsCameraComponent

Source references:

Topic	Source
Class declaration	Plugins/ALS-Refactored/Source/ALSCamera/Public/AlsCameraComponent.h
Component tick	Plugins/ALS-Refactored/Source/ALSCamera/Private/AlsCameraComponent.cpp:77
GetViewInfo()	AlsCameraComponent.cpp:140
Main camera update	AlsCameraComponent.cpp:154
Character CalcCamera() delegation	Plugins/ALS-Refactored/Source/ALSExtras/Private/AlsCharacterExample.cpp:51

UAlsCameraComponent:

• inherits from USkeletalMeshComponent
• is attached to the character mesh
• calculates camera view data itself
• supports first-person and third-person behavior
• supports shoulder switching
• handles pivot lag and camera collision tracing
• can override field of view and post-process weight

Related camera assets:

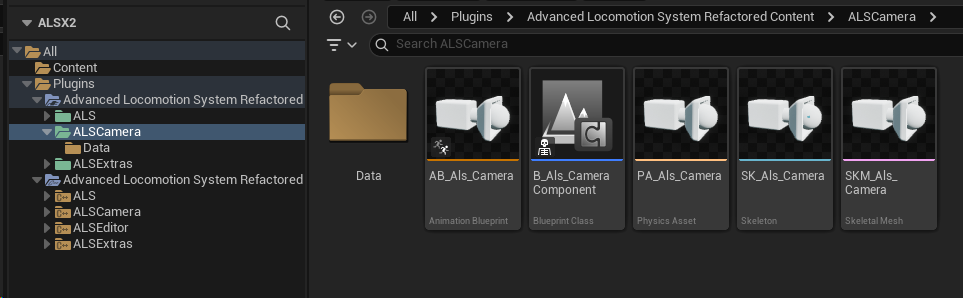

ALS camera folder content

Asset	Path
Camera component Blueprint	/ALS/ALSCamera/B_Als_CameraComponent
Camera animation Blueprint	/ALS/ALSCamera/AB_Als_Camera

If you come from a standard Unreal character setup, this section is a good reminder that ALS is doing something more custom here. That is why trying to reason about it like a normal spring-arm stack usually gets confusing fast.

12. Overlay System

Overlay mode controls how the character’s upper body, held object, and overlay animation layer should behave.

Overlay gameplay tags include:

Als.OverlayMode.Default
Als.OverlayMode.Rifle
Als.OverlayMode.PistolOneHanded
Als.OverlayMode.PistolTwoHanded
Als.OverlayMode.Bow
Als.OverlayMode.Torch
Als.OverlayMode.Box
Als.OverlayMode.Barrel

B_Als_Character maps overlay tags to overlay animation Blueprints through OverlayAnimationInstanceClasses.

Example mappings:

Overlay tag	Animation Blueprint path
Als.OverlayMode.Default	/ALS/ALS/Character/AnimationInstances/Overlays/AB_Als_Default
Als.OverlayMode.Rifle	/ALS/ALS/Character/AnimationInstances/Overlays/AB_Als_Rifle
Als.OverlayMode.PistolOneHanded	/ALS/ALS/Character/AnimationInstances/Overlays/AB_Als_PistolOneHanded
Als.OverlayMode.PistolTwoHanded	/ALS/ALS/Character/AnimationInstances/Overlays/AB_Als_PistolTwoHanded
Als.OverlayMode.Bow	/ALS/ALS/Character/AnimationInstances/Overlays/AB_Als_Bow
Als.OverlayMode.Torch	/ALS/ALS/Character/AnimationInstances/Overlays/AB_Als_Torch

Overlay object assets include:

Object	Path
Rifle skeletal mesh	/ALS/ALS/OverlayObjects/Rifle/SKM_Als_Rifle
Pistol skeletal mesh	/ALS/ALS/OverlayObjects/Pistol/SKM_Als_Pistol
Bow skeletal mesh	/ALS/ALS/OverlayObjects/Bow/SKM_Als_Bow
Torch static mesh	/ALS/ALS/OverlayObjects/Torch/SM_Als_Torch
Box static mesh	/ALS/ALS/OverlayObjects/Box/SM_Als_Box
Barrel static mesh	/ALS/ALS/OverlayObjects/Barrel/SM_Als_Barrel

The overlay menu UI is controlled by:

/ALS/ALSExtras/Core/B_Als_PlayerController

The actual overlay state belongs to the character and is changed through AAlsCharacter::SetOverlayMode() in:

Plugins/ALS-Refactored/Source/ALS/Private/AlsCharacter.cpp:1029

This is a helpful place to separate two ideas:

• the overlay selection UI lives in the controller/UI layer
• the actual overlay state lives in the character/runtime layer

That separation makes the plugin easier to customize later, because you can replace the menu without having to rewrite how overlays work internally.

13. Networking and Replication

ALS is network-aware. It replicates selected state so remote clients can animate and simulate the character consistently.

Replication is configured in:

Plugins/ALS-Refactored/Source/ALS/Private/AlsCharacter.cpp:71

Replicated or network-managed values include:

Value	Purpose
DesiredStance	Keeps crouch or stand request synchronized
DesiredGait	Keeps walk, run, or sprint request synchronized
bDesiredAiming	Keeps aiming request synchronized
DesiredRotationMode	Keeps requested rotation behavior synchronized
ViewMode	Keeps first-person or third-person state synchronized
OverlayMode	Keeps overlay animation and object state synchronized
ReplicatedViewRotation	Shares view rotation data for smoothing and animation
InputDirection	Shares movement input direction
DesiredVelocityYawAngle	Helps short movement starts replicate correctly
RagdollTargetLocation	Helps ragdoll state replicate

Useful RPC or state functions:

Function	Source
SetViewMode()	AlsCharacter.cpp:430
SetDesiredAiming()	AlsCharacter.cpp:564
SetDesiredStance()	AlsCharacter.cpp:760
SetDesiredGait()	AlsCharacter.cpp:889
SetOverlayMode()	AlsCharacter.cpp:1029
ServerSetDesiredGait()	AlsCharacter.cpp:923
ServerSetOverlayMode()	AlsCharacter.cpp:1067
ServerStartMantling()	AlsCharacter_Actions.cpp:449
ServerStartRagdolling()	AlsCharacter_Actions.cpp:743

If you are only interested in single-player behavior, this section can feel easy to skip. It is still worth knowing it exists, because some ALS logic makes a lot more sense once you realize the plugin is carefully trying to keep local and remote characters in sync.

14. Debug Features

ALS includes built-in debug channels that can be enabled from the console.

Character debug displays:

Command	Source constant
ShowDebug Als.Curves	Plugins/ALS-Refactored/Source/ALS/Public/Utility/AlsConstants.h:90
ShowDebug Als.State	AlsConstants.h:91
ShowDebug Als.Shapes	AlsConstants.h:92
ShowDebug Als.Traces	AlsConstants.h:93
ShowDebug Als.Mantling	AlsConstants.h:94

Camera debug displays:

Command	Source
ShowDebug Als.CameraCurves	Plugins/ALS-Refactored/Source/ALSCamera/Private/AlsCameraModule.cpp:36
ShowDebug Als.CameraShapes	AlsCameraModule.cpp:41
ShowDebug Als.CameraTraces	AlsCameraModule.cpp:46

These are useful when checking:

• foot placement
• camera traces
• mantling traces
• character state
• animation curves
• camera collision

If you are learning the plugin, these debug displays are one of the best ways to turn ALS from “a lot of moving parts” into something you can actually inspect step by step.

15. Complete Play Flow Summary

This is the full sample flow from map startup to rendered character pose:

[Map starts]
    |
    v
B_Als_GameMode
    Path: /ALS/ALSExtras/Core/B_Als_GameMode
    |
    |-- DefaultPawnClass
    |     -> /ALS/ALS/Character/B_Als_Character
    |
    |-- PlayerControllerClass
          -> /ALS/ALSExtras/Core/B_Als_PlayerController

[Player controller BeginPlay]
    |
    |-- Adds UI mapping context
    |     -> /ALS/ALSExtras/Data/Input/IMC_Als_UI
    |
    |-- Creates HUD widget
    |     -> /ALS/ALSExtras/UI/W_Als_Hud
    |
    |-- Creates overlay menu widget
          -> /ALS/ALSExtras/UI/W_Als_OverlayModeMenu

[Character possession]
    |
    v
AAlsCharacterExample::NotifyControllerChanged()
    Source: Plugins/ALS-Refactored/Source/ALSExtras/Private/AlsCharacterExample.cpp:19
    |
    |-- Adds default gameplay input mapping context
          -> /ALS/ALS/Data/Input/IMC_Als_Default

[Input binding]
    |
    v
AAlsCharacterExample::SetupPlayerInputComponent()
    Source: AlsCharacterExample.cpp:62
    |
    |-- Binds movement, look, sprint, crouch, jump, aim, roll,
        ragdoll, rotation mode, view mode, and shoulder switch actions

[Per-frame character update]
    |
    v
AAlsCharacter::Tick()
    Source: Plugins/ALS-Refactored/Source/ALS/Private/AlsCharacter.cpp:266
    |
    |-- RefreshMovementBase()
    |-- RefreshInput()
    |-- RefreshLocomotion()
    |-- RefreshGait()
    |-- RefreshRotationMode()
    |-- RefreshGroundedRotation() / RefreshInAirRotation()
    |-- AutoStartMantling() / RefreshMantling()
    |-- RefreshRagdolling()
    |-- RefreshRolling()

[Camera update]
    |
    v
AAlsCharacterExample::CalcCamera()
    Source: AlsCharacterExample.cpp:51
    |
    v
UAlsCameraComponent::GetViewInfo()
    Source: Plugins/ALS-Refactored/Source/ALSCamera/Private/AlsCameraComponent.cpp:140

[Animation update]
    |
    v
/ALS/ALS/Character/AB_Als
    |
    |-- Reads ALS character state through UAlsAnimationInstance
    |-- Routes into linked animation Blueprints
    |-- Blends locomotion, view, overlay, feet, transitions, turn-in-place,
        rotate-in-place, ragdolling, and final pose output

Complete ALS sample play flow diagram

The key idea is that ALS state is produced mostly by AAlsCharacter, then consumed by the camera and animation systems. When debugging behavior, follow that direction: input, character state, camera or animation output.
